PrepQuip’s Atomix In-Line Mixer/Oxygen Reactor has been designed to produce ultra-fine gas bubbles in liquid streams, resulting in excellent gas dispersion and utilization efficiency. The compact design includes a four stage mixing system, two stages of atomisation of air bubbles and two stages of dispersion. The reactor is manufactured with highly abrasive resistant ceramic internals. Several Atomix models are available to suit a variety of slurry flow rates according to client requirements. Capacities range from 35 m3/hr to 1,040 m3/hr. The PrepQuip Atomix can be installed in a number of different configurations to suit the application the client requires.

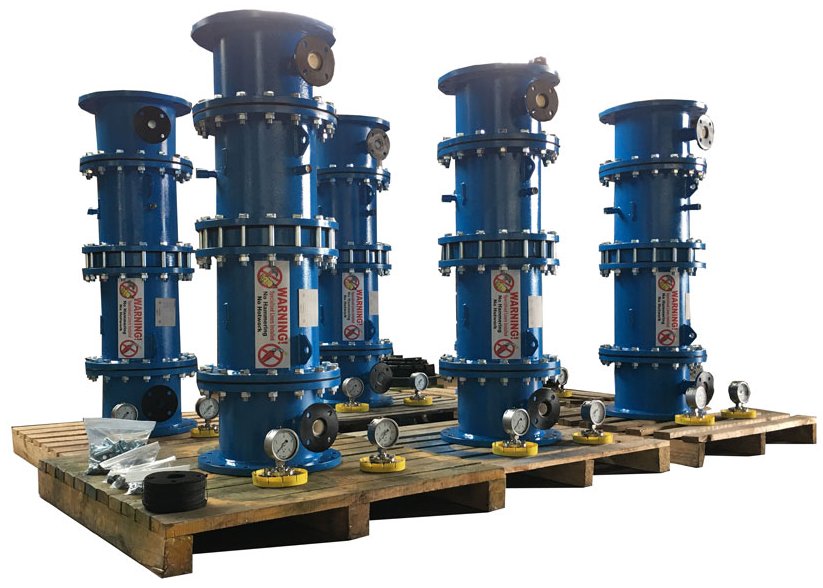

atomix in line mixer oxygen reactor

Atomix Features:

  • Excellent gas dispersion and utilisation efficiency
  • High mass transfer efficiency
  • Line size ranges from 100 – 350mm (NB)
  • No moving parts
  • Compact design
  • Low energy consumption
  • Low operational cost
  • Longer service life
  • Minimal maintenance
  • Installation option
  • Fresh feed transfer
  • Fresh feed recycled
  • High wear areas from abrasive resistant material
  • Capacity ranges from 30 to 1,080 m³ /hr or 135 to 4,750 gpm (USA)

Atomix Applications:

  • Gold (leaching with oxygen, CIP or CIL), platinum flotation, and other flotation or gas injection required processes
  • Chemical plants –gas mixing
  • General Liquid mixing

Installation options:

  • Fresh feed is pumped into first tank. Atomix is installed on pump discharge and introduce gas into stream. Atomised slurry is pumped to next tank
  • Fresh feed is recycled. Atomix is installed on pump discharge and introduce gas into stream. Atomised slurry is pumped back to same tank. Tank overflows to next tank

atomix
atomix
